Walter

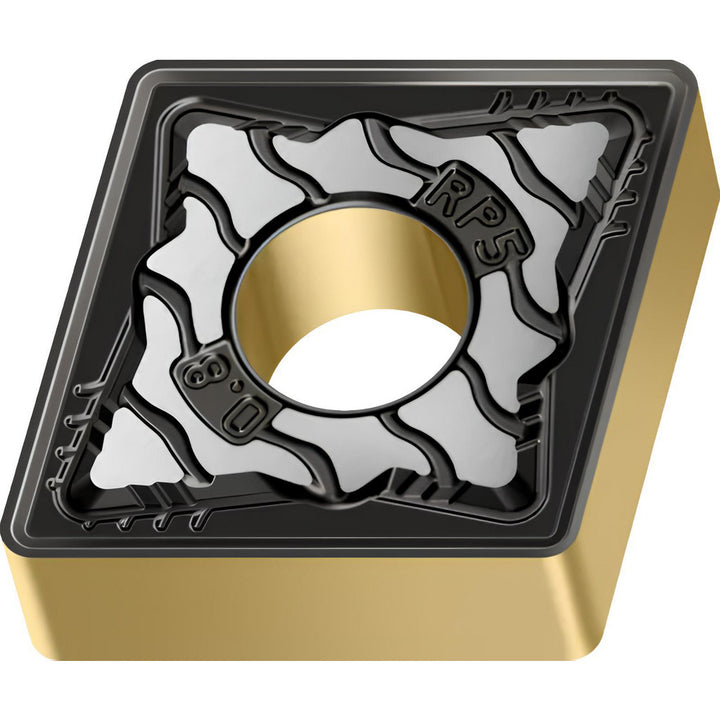

CNMG120412-RP5 WPP20S Carbide Insert, Grade WPP20S, TiCN - Walter 6059561
MFR# 6059561ISO/ANSI# CNMG433-RP5 WPP20SSeries CNMG-RP5
$17.53List $22.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWPP20S
MaterialCarbide
CoatingTiCN
Description
The Walter 6059561 is a CNMG120412-RP5 WPP20S carbide indexable insert, grade WPP20S, TiCN coated. Suited for steel.
Specifications
Chip breakerRP5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG433-RP5 WPP20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412-RP5 WPP20S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6059561
Manufacturer gradeWPP20S
Material gradeP20; K30
Maximum depth of cut0.2360
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
