Walter

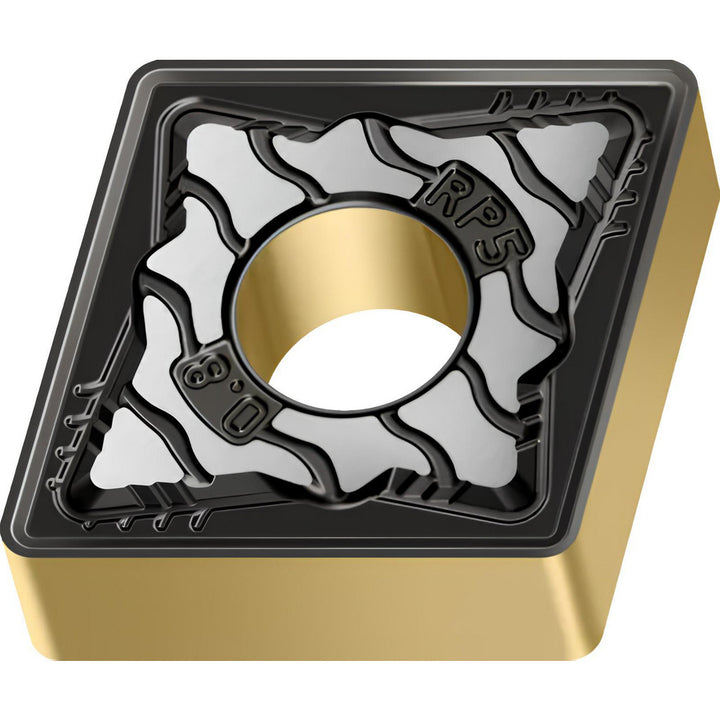

CNMG120408-RP5 WPP10S Carbide Insert, Grade WPP10S, TiCN - Walter 6059598
MFR# 6059598ISO/ANSI# CNMG432-RP5 WPP10SSeries CNMG-RP5
$17.53List $22.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWPP10S
MaterialCarbide
CoatingTiCN
Description
The Walter 6059598 is a CNMG120408-RP5 WPP10S carbide indexable insert, grade WPP10S, TiCN coated. Suited for steel.
Specifications
Chip breakerRP5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG432-RP5 WPP10S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-RP5 WPP10S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6059598
Manufacturer gradeWPP10S
Material gradeP10; K20
Maximum depth of cut0.2360
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
