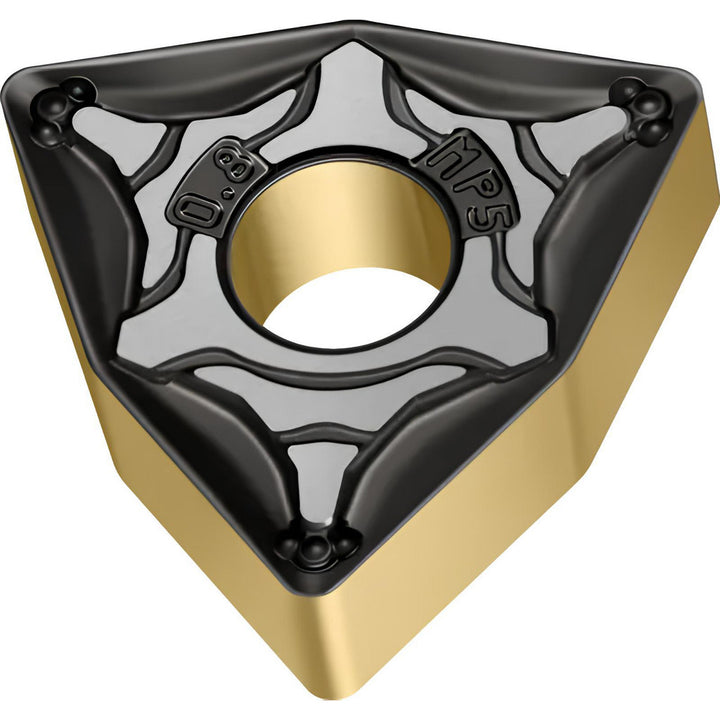

WNMG080408-MP5 WPP30S Carbide Insert, Grade WPP30S, TiCN - Walter 6059953

Walter

WNMG080408-MP5 WPP30S Carbide Insert, Grade WPP30S, TiCN - Walter 6059953

MFR# 6059953ISO/ANSI# WNMG432-MP5 WPP30SSeries WNMG-MP5

$21.14List $27.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeWPP30S
MaterialCarbide
CoatingTiCN

Description

The Walter 6059953 is a WNMG080408-MP5 WPP30S carbide indexable insert, grade WPP30S, TiCN coated. Suited for steel.

Specifications

Chip breakerMP5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberWNMG432-MP5 WPP30S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-MP5 WPP30S
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number6059953
Manufacturer gradeWPP30S
Material gradeP30
Maximum depth of cut0.1970
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
