Walter

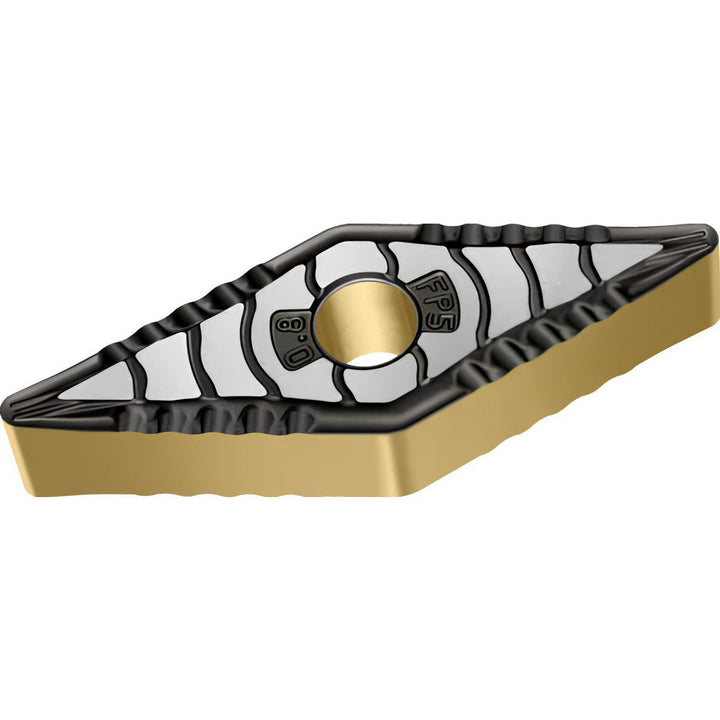

VNMG160408-FP5 WPP10S Carbide Insert, Grade WPP10S, TiCN - Walter 6060078
MFR# 6060078ISO/ANSI# VNMG332-FP5 WPP10SSeries VNMG-FP5
$32.00List $41.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeWPP10S
MaterialCarbide
CoatingTiCN
Description
The Walter 6060078 is a VNMG160408-FP5 WPP10S carbide indexable insert, grade WPP10S, TiCN coated. Suited for steel.
Specifications
Chip breakerFP5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG332-FP5 WPP10S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408-FP5 WPP10S
Lead angle35degree
Length range0.6500 - 0.7000
Manufacturers catalog number6060078
Manufacturer gradeWPP10S
Material gradeP10; K20
Maximum depth of cut0.0790
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle16
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
