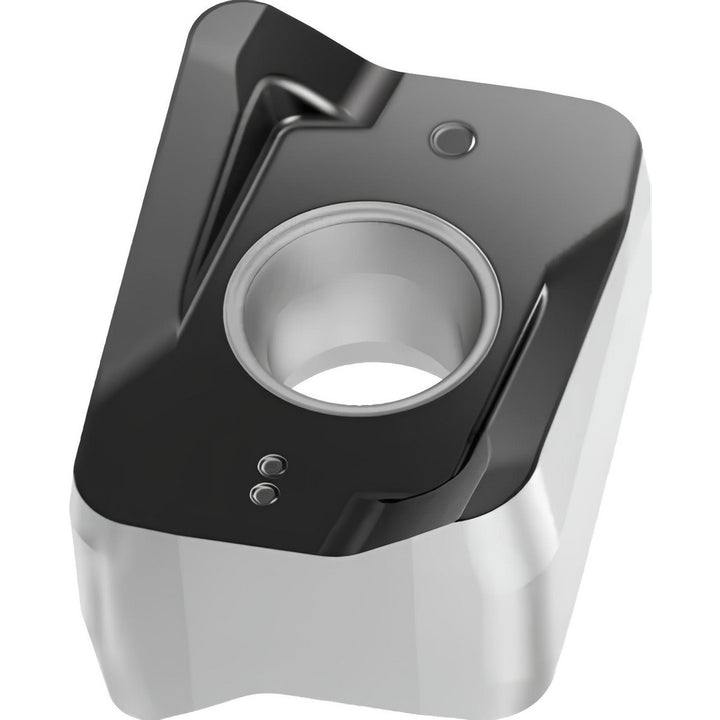

LNGX130716R-L55 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6068959

Walter

LNGX130716R-L55 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6068959

MFR# 6068959ISO/ANSI# LNGX130716R-L55 WKP25SCat# LNGX130716R-L55Series LNGX

$27.71List $35.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeWKP25S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6068959 is a LNGX130716R-L55 WKP25S solid carbide indexable insert, grade WKP25S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNGX130716R-L55 WKP25S
Chip breakerL55
Coating finishTiCN
Coating processCVD
Corner radius0.0630
Cutter series compatibilityF2010; F4041
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.4330
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size13
Insert size code130716
Insert styleLNGX
Iso codeLNGX130716R-L55 WKP25S
Length0.5390
Length range0.5000 to 0.6000
Manufacturers catalog numberLNGX130716R-L55
Manufacturer gradeWKP25S
Material applicationSteel; Cast Iron
Material gradeP25; K25
Maximum depth of cut0.5390
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle28
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.3050
Thickness range0.2500 to 0.3500
Width0.4330
