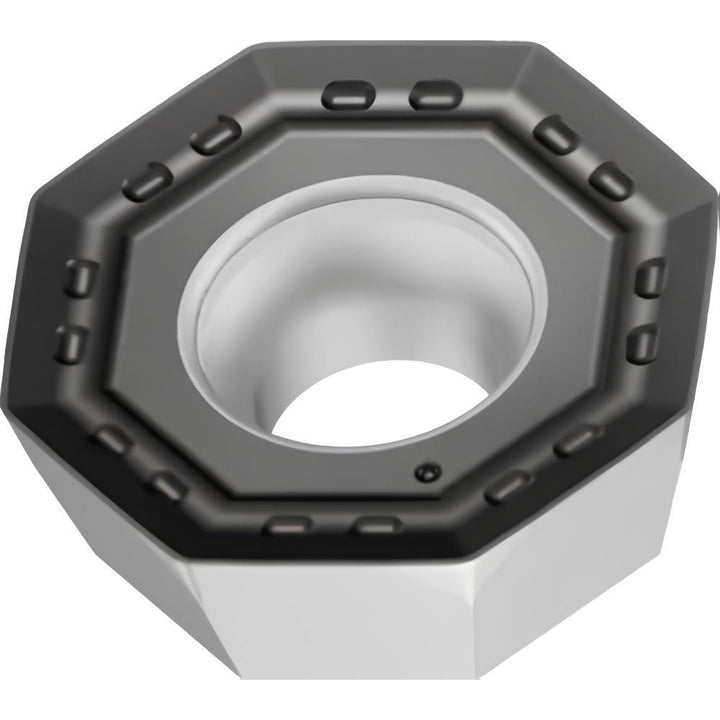

ODMT0605ZZN-D57 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6069405

Walter

ODMT0605ZZN-D57 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6069405

MFR# 6069405ISO/ANSI# ODMT0605ZZN-D57 WKP25SCat# ODMT0605ZZN-D57Series ODMT

$26.10List $33.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeOctagon
GradeWKP25S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6069405 is a ODMT0605ZZN-D57 WKP25S solid carbide indexable insert, grade WKP25S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeODMT0605ZZN-D57 WKP25S
Chip breakerD57
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2010; M5004
Cutting edge styleHoned
Included angle degree135
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code0605
Insert styleODMT
Iso codeODMT0605ZZN-D57 WKP25S
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberODMT0605ZZN-D57
Manufacturer gradeWKP25S
Material applicationSteel; Cast Iron
Material gradeP25; K25
Maximum depth of cut0.2590
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
