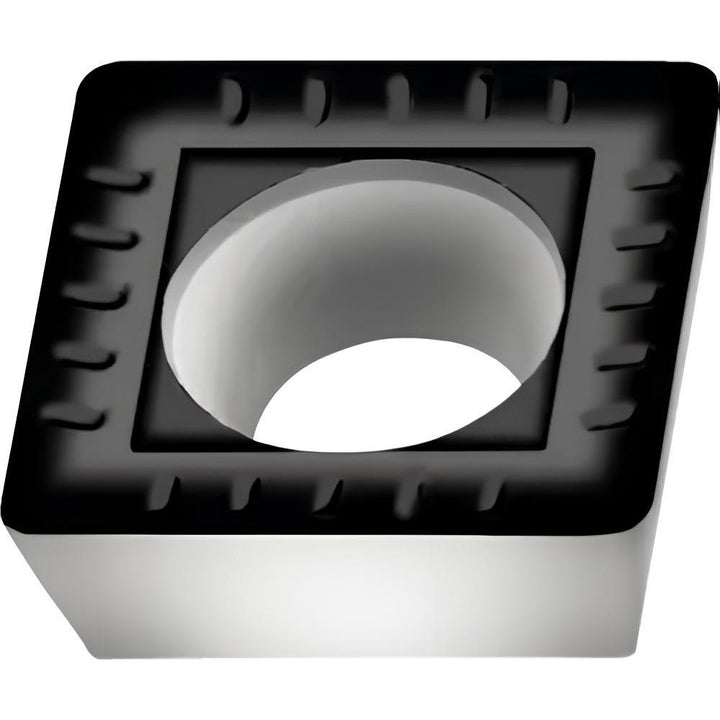

SPMT09T308-D51 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6069443

Walter

SPMT09T308-D51 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6069443

MFR# 6069443ISO/ANSI# SPMT09T308-D51 WKP25SCat# SPMT09T308-D51Series SPMT

$16.43List $21.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeWKP25S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6069443 is a SPMT09T308-D51 WKP25S solid carbide indexable insert, grade WKP25S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeSPMT09T308-D51 WKP25S
Chip breakerD51
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2239
Cutting edge styleHoned
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T308
Insert styleSPMT
Iso codeSPMT09T308-D51 WKP25S
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSPMT09T308-D51
Manufacturer gradeWKP25S
Material applicationSteel; Cast Iron
Material gradeP25; K25
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
