Walter

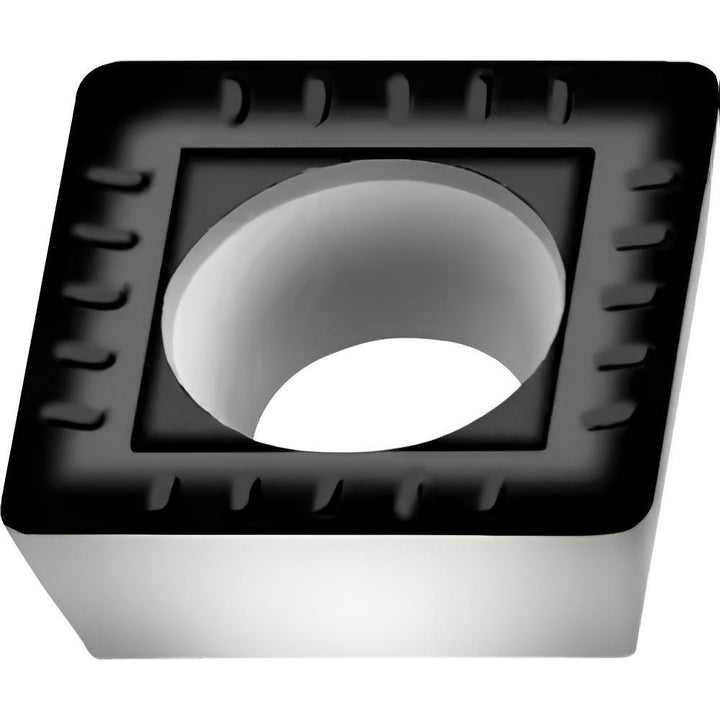

SPMT120408-D51 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6069444
MFR# 6069444ISO/ANSI# SPMT120408-D51 WKP25SCat# SPMT120408-D51Series SPMT
$23.56List $29.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeWKP25S
MaterialSolid Carbide
CoatingTiCN
Description
The Walter 6069444 is a SPMT120408-D51 WKP25S solid carbide indexable insert, grade WKP25S, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi codeSPMT120408-D51 WKP25S
Chip breakerD51
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2239
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120408
Insert styleSPMT
Iso codeSPMT120408-D51 WKP25S
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSPMT120408-D51
Manufacturer gradeWKP25S
Material applicationSteel; Cast Iron
Material gradeP25; K25
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
