Walter

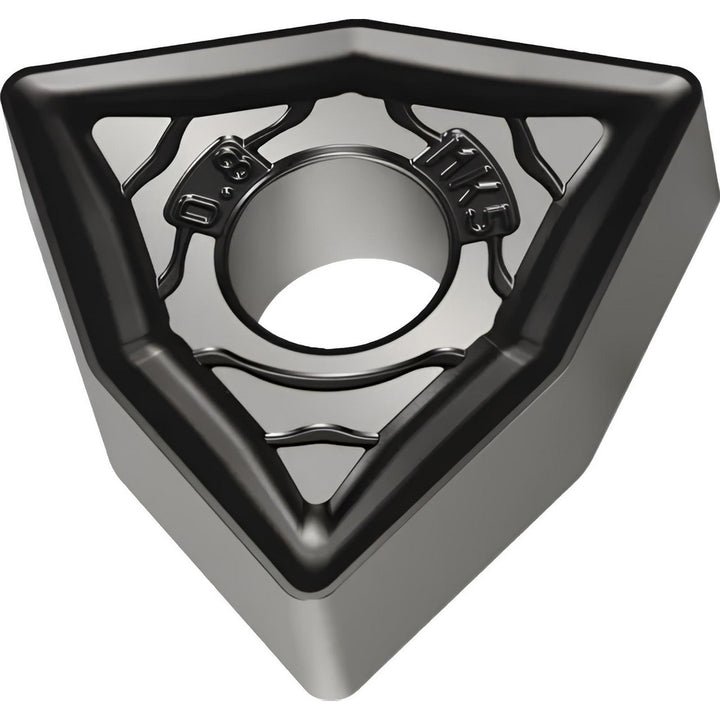

WNMG080408-MK5 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6070388
MFR# 6070388ISO/ANSI# WNMG432-MK5 WKK20SSeries WNMG-MK5
$20.46List $26.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeWKK20S
MaterialCarbide
CoatingTiCN
Description
The Walter 6070388 is a WNMG080408-MK5 WKK20S carbide indexable insert, grade WKK20S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerMK5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberWNMG432-MK5 WKK20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-MK5 WKK20S
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number6070388
Manufacturer gradeWKK20S
Material gradeK20; P10
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle14
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
