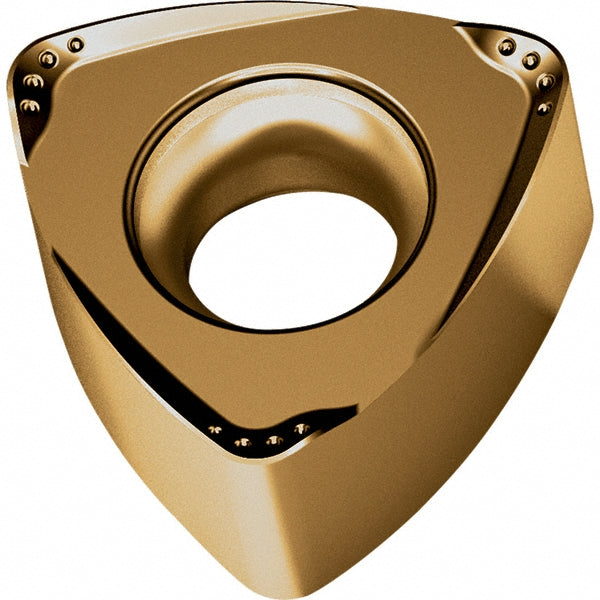

P23696-1.0 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6072487

Walter

P23696-1.0 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6072487

MFR# 6072487ISO/ANSI# P23696-1.0 WKP25SCat# P23696-1.0Series P23696

$32.68List $41.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeWKP25S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6072487 is a P23696-1.0 WKP25S solid carbide indexable insert, grade WKP25S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeP23696-1.0 WKP25S
Chip breakerCommon
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityF4030
Cutting edge styleHigh Feed Rate
Hole diameter0.1732
Included angle degree60
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert sizeP2
Insert size codeP23696
Insert styleP23696
Iso codeP23696-1.0 WKP25S
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberP23696-1.0
Manufacturer gradeWKP25S
Material applicationSteel; Cast Iron
Material gradeP25; K25
Maximum depth of cut0.3280
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2090
Thickness range0.2000 to 0.2200
Width in3/8
