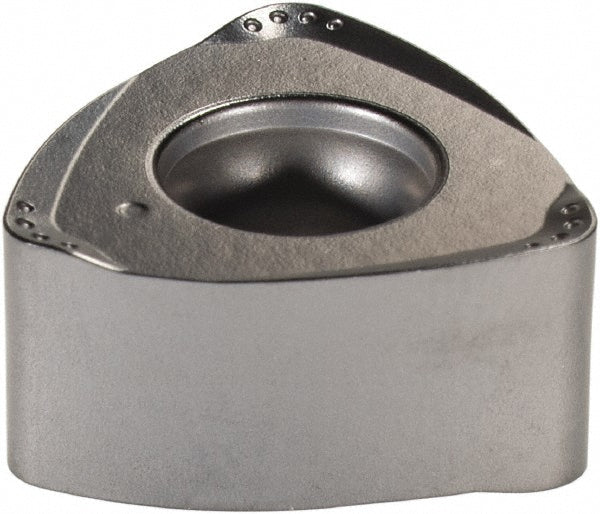

P23696-2.0 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6072488

Walter

P23696-2.0 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6072488

MFR# 6072488ISO/ANSI# P23696-2.0 WKP25SCat# P23696-2.0Series P23696

$43.95List $56.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/32
ShapeTriangle
GradeWKP25S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6072488 is a P23696-2.0 WKP25S solid carbide indexable insert, grade WKP25S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeP23696-2.0 WKP25S
Chip breakerCommon
Coating finishTiCN
Coating processCVD
Corner radius0.0630
Cutter series compatibilityF4030
Cutting edge styleHigh Feed Rate
Hole diameter0.2165
Included angle degree60
Inscribed circle in17/32
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert sizeP2
Insert size codeP23696
Insert styleP23696
Iso codeP23696-2.0 WKP25S
Length in17/32
Length range0.5000 to 0.6000
Manufacturers catalog numberP23696-2.0
Manufacturer gradeWKP25S
Material applicationSteel; Cast Iron
Material gradeP25; K25
Maximum depth of cut0.4680
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2920
Thickness range0.2500 to 0.3500
Width in17/32
