Walter

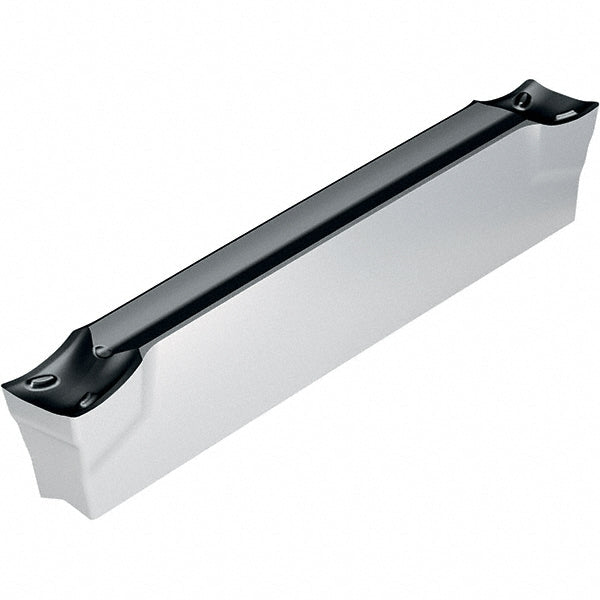

GX24-2E300N02-CF6 Carbide Insert, Grade WSM33S, Al2O3 - Walter 6089965
MFR# 6089965ISO/ANSI# GX24-2E300N02-CF6Cat# GX24-2E300N02-CF6Series Tiger-tec
$32.75List $42.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialCarbide
CoatingAl2O3
Description
The Walter 6089965 is a GX24-2E300N02-CF6 carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloys.
Specifications
Ansi codeGX242E300N02CF6 WSM33S
Chip breakerCF6
Coating finishAl2O3
Coating processPVD
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size2E300N02
Insert size code2E300N02
Insert styleGX
Iso codeGX24-2E300N02-CF6
Manufacturers catalog numberGX24-2E300N02-CF6
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Maximum depth of cut (mm)22.00
Multi use toolYes
Overall length0.9685
Primary workpiece materialSuperalloys
StandardsANSI; ISO
