Walter

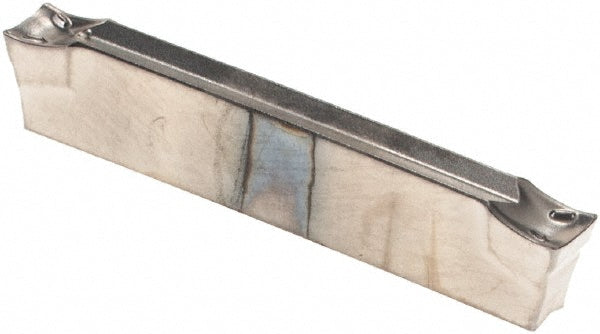

GX24-2E300N02-CF6 Solid Carbide Insert, Grade WSM43S, Al - Walter 6089966
MFR# 6089966ISO/ANSI# GX24-2E300N02-CF6Cat# GX24-2E300N02-CF6Series Tiger-tec
$32.75List $42.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM43S
MaterialSolid Carbide
CoatingAl
Description
The Walter 6089966 is a GX24-2E300N02-CF6 solid carbide indexable insert, grade WSM43S, Al coated. Suited for superalloy.
Specifications
Ansi codeGX242E300N02CF6 WSM43S
Chip breakerCF6
Coating finishAl
Coating processPVD
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size2E300N02
Insert size code2E300N02
Insert styleGX
Iso codeGX24-2E300N02-CF6
Manufacturers catalog numberGX24-2E300N02-CF6
Manufacturer gradeWSM43S
Material gradeS45; M45; P45
Maximum depth of cut (mm)22.00
Multi use toolYes
Overall length0.9685
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsANSI; ISO
