Walter

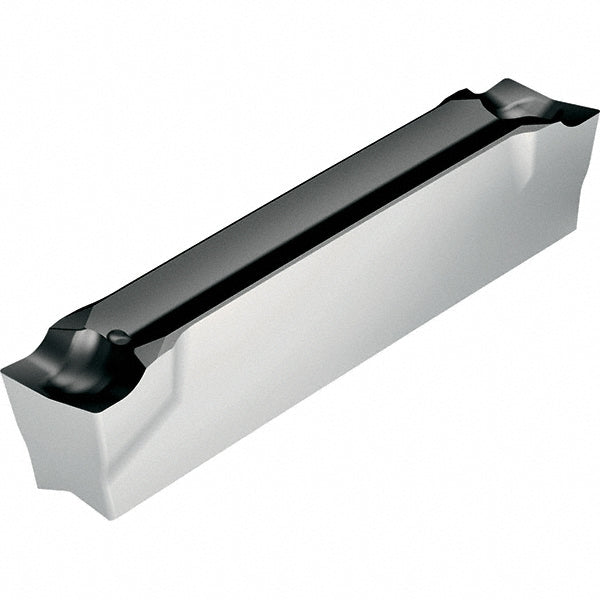

GX24-2E300N02-CF5 Solid Carbide Insert, Grade WSM43S, Al - Walter 6090584
MFR# 6090584ISO/ANSI# GX24-2E300N02-CF5Cat# GX24-2E300N02-CF5Series Tiger-tec
$32.75List $42.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM43S
MaterialSolid Carbide
CoatingAl
Description
The Walter 6090584 is a GX24-2E300N02-CF5 solid carbide indexable insert, grade WSM43S, Al coated. Suited for superalloy.
Specifications
Ansi codeGX242E300N02CF5 WSM43S
Chip breakerCF5
Coating finishAl
Coating processPVD
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size2E300N02
Insert size code2E300N02
Insert styleGX
Iso codeGX24-2E300N02-CF5
Manufacturers catalog numberGX24-2E300N02-CF5
Manufacturer gradeWSM43S
Material gradeS45; M45; P45
Maximum depth of cut (mm)22.00
Multi use toolYes
Overall length0.9449
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsANSI; ISO
