Walter

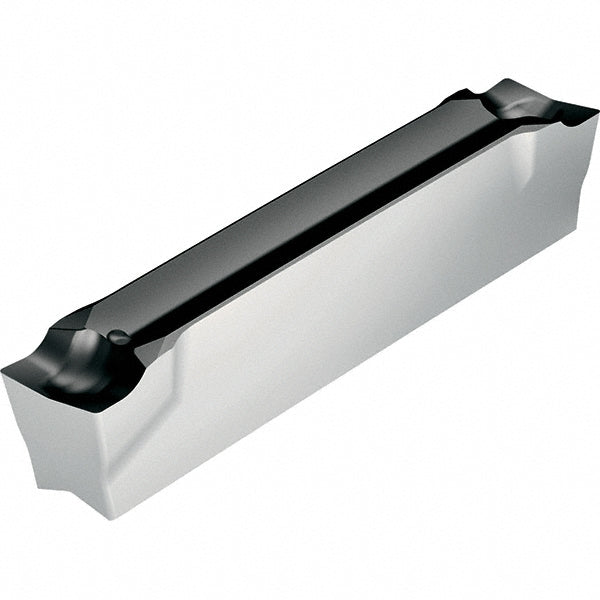

GX24-3E400N02-CF5 Carbide Insert, Grade WSM33S, Al2O3 - Walter 6091912
MFR# 6091912ISO/ANSI# GX24-3E400N02-CF5Cat# GX24-3E400N02-CF5Series Tiger-tec
$36.05List $46.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialCarbide
CoatingAl2O3
Description
The Walter 6091912 is a GX24-3E400N02-CF5 carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloys.
Specifications
Ansi codeGX243E400N02CF5 WSM33S
Chip breakerCF5
Coating finishAl2O3
Coating processPVD
Corner radius0.0079
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size3E400N02
Insert size code3E400N02
Insert styleGX
Iso codeGX24-3E400N02-CF5
Manufacturers catalog numberGX24-3E400N02-CF5
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Maximum depth of cut (mm)22.00
Multi use toolYes
Overall length0.9449
Primary workpiece materialSuperalloys
StandardsANSI; ISO
