Walter

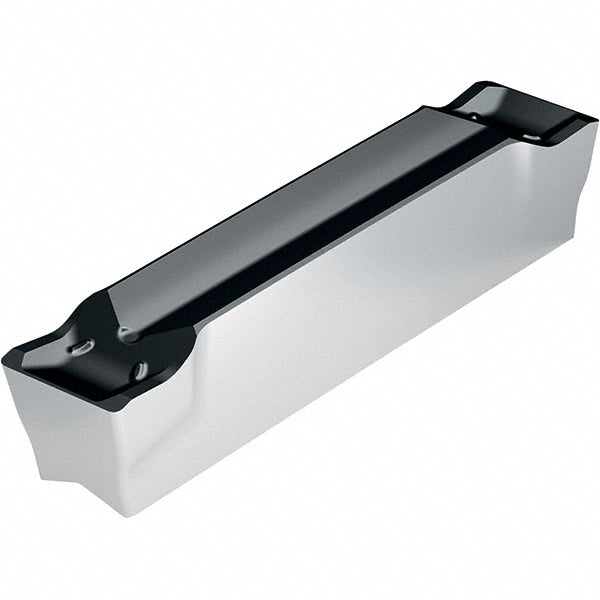

GX16-2E300N02-CE4 Carbide Insert, Grade WSM33S, Al2O3 - Walter 6092198
MFR# 6092198ISO/ANSI# GX16-2E300N02-CE4Cat# GX16-2E300N02-CE4Series Tiger-tec
$28.14List $36.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialCarbide
CoatingAl2O3
Description
The Walter 6092198 is a GX16-2E300N02-CE4 carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloys.
Specifications
Ansi codeGX162E300N02CE4 WSM33S
Chip breakerCE4
Coating finishAl2O3
Coating processPVD
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size2E300N02
Insert size code2E300N02
Insert styleGX
Iso codeGX16-2E300N02-CE4
Manufacturers catalog numberGX16-2E300N02-CE4
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Maximum depth of cut (mm)15.00
Measurement typeMetric
Multi use toolYes
Overall length0.6535
Primary workpiece materialSuperalloys
StandardsANSI; ISO
