Walter

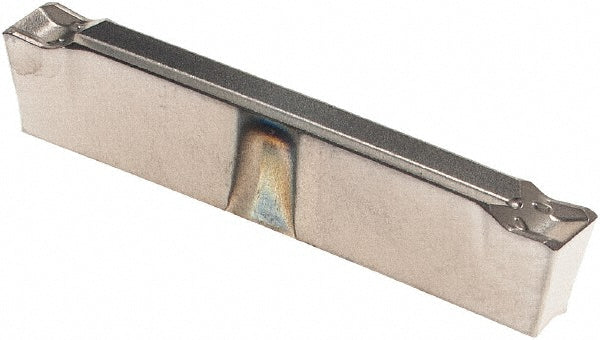

GX24-2E300N02-CE4 Solid Carbide Insert, Grade WSM33S, Al2O3 - Walter 6092250
MFR# 6092250ISO/ANSI# GX24-2E300N02-CE4Cat# GX24-2E300N02-CE4Series Tiger-tec
$32.75List $42.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6092250 is a GX24-2E300N02-CE4 solid carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloy.
Specifications
Ansi codeGX242E300N02CE4 WSM33S
Chip breakerCE4
Coating finishAl2O3
Coating processPVD
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size2E300N02
Insert size code2E300N02
Insert styleGX
Iso codeGX24-2E300N02-CE4
Manufacturers catalog numberGX24-2E300N02-CE4
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Maximum depth of cut (mm)22.00
Multi use toolYes
Overall length0.9449
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsANSI; ISO
