Walter

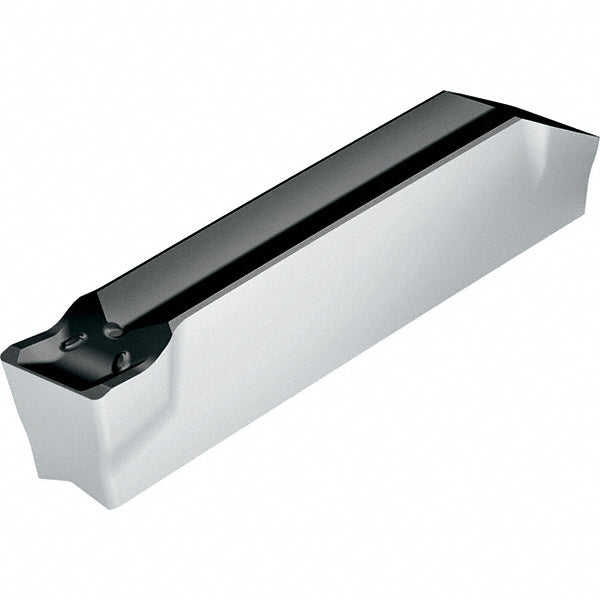

GX24-2F300N02-CE4 Carbide Insert, Grade WSM33S, Al2O3 - Walter 6092285
MFR# 6092285ISO/ANSI# GX24-2F300N02-CE4Cat# GX24-2F300N02-CE4Series Tiger-tec
$21.98List $28.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialCarbide
CoatingAl2O3
Description
The Walter 6092285 is a GX24-2F300N02-CE4 carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloys.
Specifications
Ansi codeGX242F300N02CE4 WSM33S
Chip breakerCE4
Coating finishAl2O3
Coating processPVD
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size2F300N02
Insert size code2F300N02
Insert styleGX
Iso codeGX24-2F300N02-CE4
Manufacturers catalog numberGX24-2F300N02-CE4
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Measurement typeMetric
Multi use toolYes
Overall length0.9331
Primary workpiece materialSuperalloys
StandardsANSI; ISO
