Walter

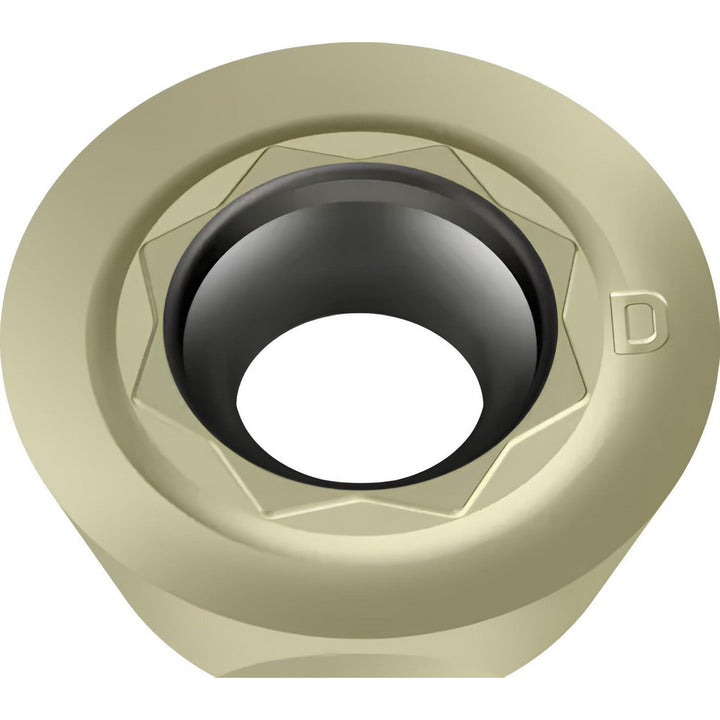

ROHX1204M0-D67 W3536 Solid Carbide Insert, Grade W3536 - Walter 6111194
MFR# 6111194ISO/ANSI# ROHX1204M0-D67 W3536Cat# ROHX1204M0-D67Series ROHX
$25.42List $32.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeW3536
MaterialSolid Carbide
Description
The Walter 6111194 is a ROHX1204M0-D67 W3536 solid carbide indexable insert, grade W3536.
Specifications
Ansi codeROHX1204M0-D67 W3536
Chip breakerD67
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree360
Inscribed circle0.4705
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204M0
Insert styleROHX
Iso codeROHX1204M0-D67 W3536
Manufacturers catalog numberROHX1204M0-D67
Manufacturer gradeW3536
Maximum depth of cut0.2353
Multi use toolYes
Number of cutting edges4
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4705
