Walter

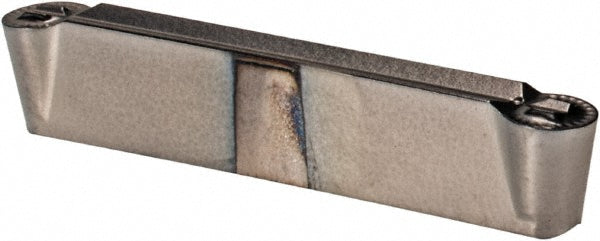

GX24-2E318N16-RD4 Solid Carbide Insert, Grade WSM33S, Al2O3 - Walter 6118453
MFR# 6118453ISO/ANSI# GX24-2E318N16-RD4Cat# GX24-2E318N16-RD4Series Tiger-tec
$32.75List $42.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6118453 is a GX24-2E318N16-RD4 solid carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloy.
Specifications
Ansi codeGX242E318N16RD4 WSM33S
Chip breakerRD4
Coating finishAl2O3
Coating processPVD
Corner radius0.0626
Cutting width0.1252
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size2E318N16
Insert size code2E318N16
Insert styleGX
Iso codeGX24-2E318N16-RD4
Manufacturers catalog numberGX24-2E318N16-RD4
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Maximum depth of cut0.0630
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.9449
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsANSI; ISO
