Walter

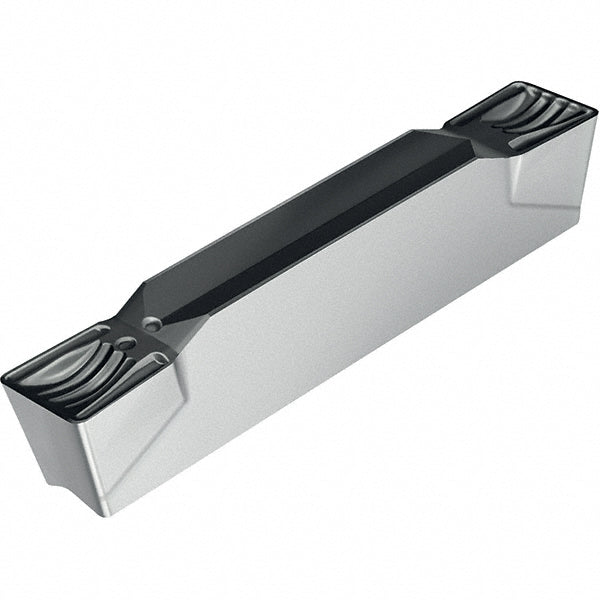

GX24-3E475N04-UF4 Carbide Insert, Grade WSM33S, Al2O3 - Walter 6118734
MFR# 6118734ISO/ANSI# GX24-3E475N04-UF4Cat# GX24-3E475N04-UF4Series Tiger-tec
$39.34List $50.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialCarbide
CoatingAl2O3
Description
The Walter 6118734 is a GX24-3E475N04-UF4 carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloys.
Specifications
Ansi codeGX243E475N04UF4 WSM33S
Chip breakerUF4
Coating finishAl2O3
Coating processPVD
Corner radius0.0157
Cutting width0.187
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size3E475N04
Insert size code3E475N04
Insert styleGX
Iso codeGX24-3E475N04-UF4
Manufacturers catalog numberGX24-3E475N04-UF4
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.9449
Primary workpiece materialSuperalloys
StandardsANSI; ISO
