Walter

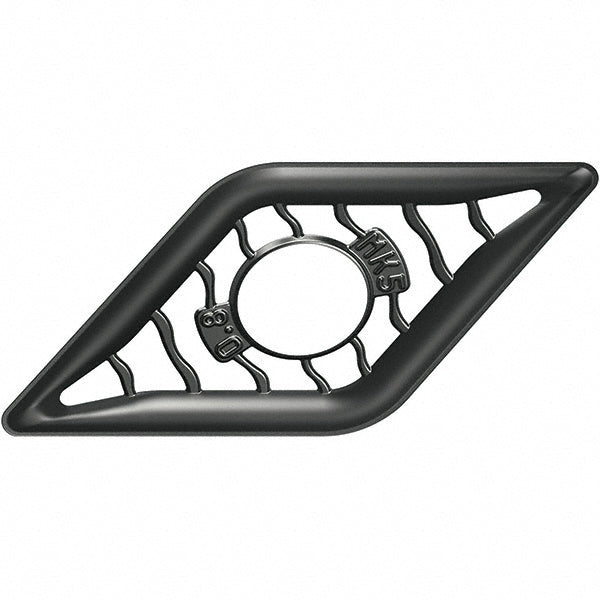

DNMG150412-MK5 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6121609
MFR# 6121609ISO/ANSI# DNMG433-MK5 WKK20SSeries DNMG-MK5
$23.49List $30.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeWKK20S
MaterialCarbide
CoatingTiCN
Description
The Walter 6121609 is a DNMG150412-MK5 WKK20S carbide indexable insert, grade WKK20S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerMK5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG433-MK5 WKK20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeDiamond 55
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150412-MK5 WKK20S
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number6121609
Manufacturer gradeWKK20S
Material gradeK20; P10
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle14
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
