Walter

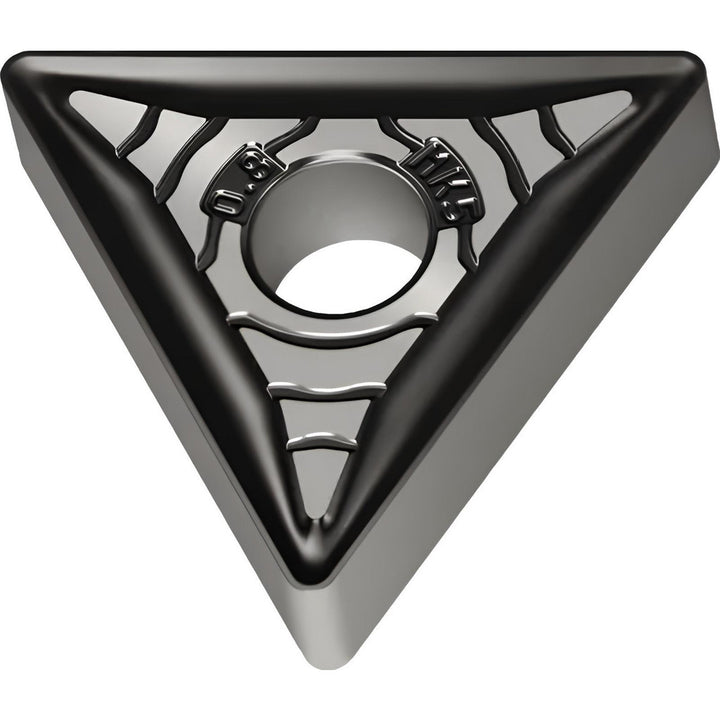

TNMG220408-MK5 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6127034
MFR# 6127034ISO/ANSI# TNMG220408Series TNMG-MK5
$20.74List $26.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeWKK20S
MaterialCarbide
CoatingTiCN
Description
The Walter 6127034 is a TNMG220408-MK5 WKK20S carbide indexable insert, grade WKK20S, TiCN coated. Suited for cast iron.
Specifications
Ansi insert codeTNMG432
Ansi size code432
Chip breakerMK5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle60
Industry standard numberTNMG432-MK5 WKK20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8660
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408-MK5 WKK20S
Iso insert codeTNMG220408
Iso size code220408
Lead angle60
Length range0.7000 - 10.0000
Manufacturers catalog number6127034
Manufacturer gradeWKK20S
Material gradeK20; P10
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle14
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8660
Wiper edgeNo
