Walter

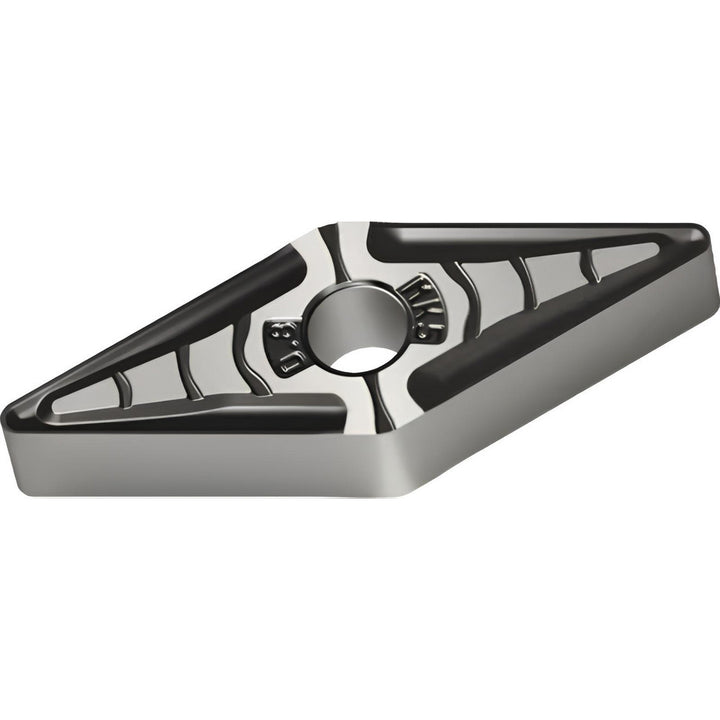

VNMG160408-MK5 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6150787
MFR# 6150787ISO/ANSI# VNMG332-MK5 WKK20SSeries VNMG-MK5
$33.79List $43.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeWKK20S
MaterialCarbide
CoatingTiCN
Description
The Walter 6150787 is a VNMG160408-MK5 WKK20S carbide indexable insert, grade WKK20S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerMK5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG332-MK5 WKK20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408-MK5 WKK20S
Lead angle35degree
Length range0.6500 - 0.7000
Manufacturers catalog number6150787
Manufacturer gradeWKK20S
Material gradeK20; P10
Maximum depth of cut0.1575
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle14
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
