Walter

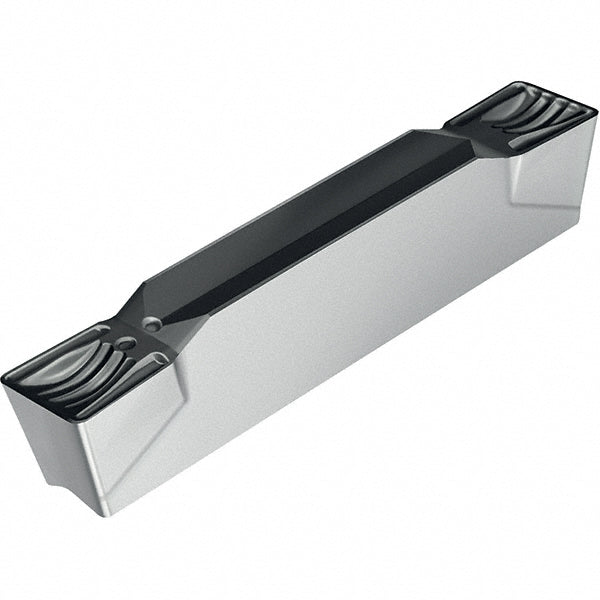

GX16-3E400N04-UF4 Solid Carbide Insert, Grade WSM33S, Al2O3 - Walter 6152357
MFR# 6152357ISO/ANSI# GX16-3E400N04-UF4Cat# GX16-3E400N04-UF4Series Tiger-tec
$33.59List $43.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6152357 is a GX16-3E400N04-UF4 solid carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloy.
Specifications
Ansi codeGX163E400N04UF4 WSM33S
Chip breakerUF4
Coating finishAl2O3
Coating processPVD
Corner radius0.0157
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3E400N04
Insert size code3E400N04
Insert styleGX
Iso codeGX16-3E400N04-UF4
Manufacturers catalog numberGX16-3E400N04-UF4
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Maximum depth of cut0.1102
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.6299
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsANSI; ISO
