Walter

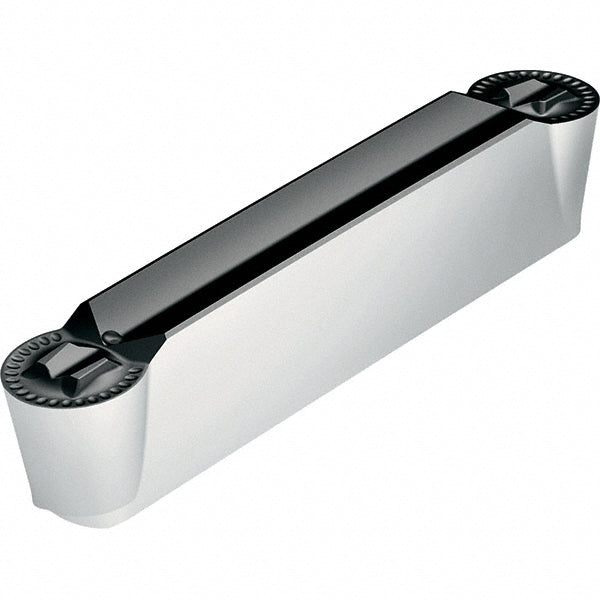

GX24-3E400N20-RD4 Solid Carbide Insert, Grade WSM33S, Al2O3 - Walter 6153445
MFR# 6153445ISO/ANSI# GX24-3E400N20-RD4Cat# GX24-3E400N20-RD4Series Tiger-tec
$43.35List $54.64
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6153445 is a GX24-3E400N20-RD4 solid carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloy.
Specifications
Ansi codeGX243E400N20RD4 WSM33S
Chip breakerRD4
Coating finishAl2O3
Coating processPVD
Corner radius0.0787
Cutting width0.1575
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3E400N20
Insert size code3E400N20
Insert styleGX24
Iso codeGX24-3E400N20-RD4
Manufacturers catalog numberGX24-3E400N20-RD4
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.9449
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsANSI; ISO
