Walter

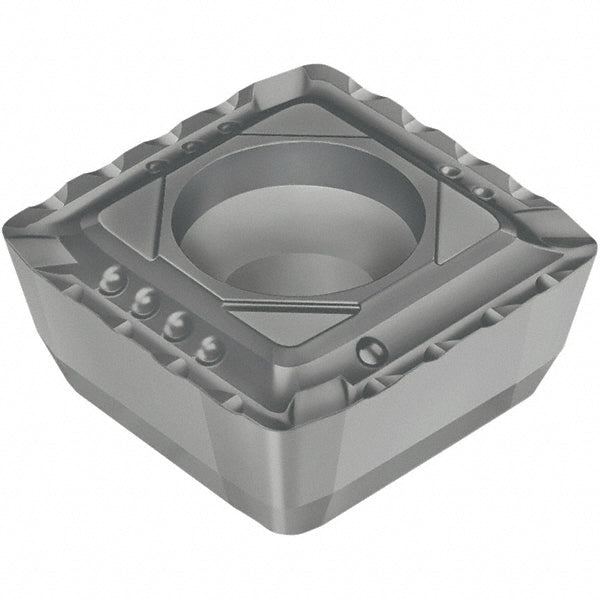

P4840C-4R-E67 WXP40 Carbide Insert, Grade WXP40, TiCN - Walter 6154409
MFR# 6154409ISO/ANSI# P4840C-4R-E67 WXP40Series Tiger Tec
$22.57List $28.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWXP40
MaterialCarbide
CoatingTiCN
Description
The Walter 6154409 is a P4840C-4R-E67 WXP40 carbide indexable insert, grade WXP40, TiCN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerE67
Coating finishTiCN
Coating processPVD
Corner radius0.0190
Included angle degree90
Inscribed circle0.3310
Insert materialCarbide
Insert size4R
Insert size code48
Insert styleP4840C
Iso codeP4840C-4R-E67 WXP40
Length0.33
Manufacturer gradeWXP40
Material gradeP40; M30; S30
Number of cutting edges4
Primary workpiece materialStainless Steel; Steel
ShapeSquare
StandardsANSI; ISO
Thickness0.132
Width0.33
