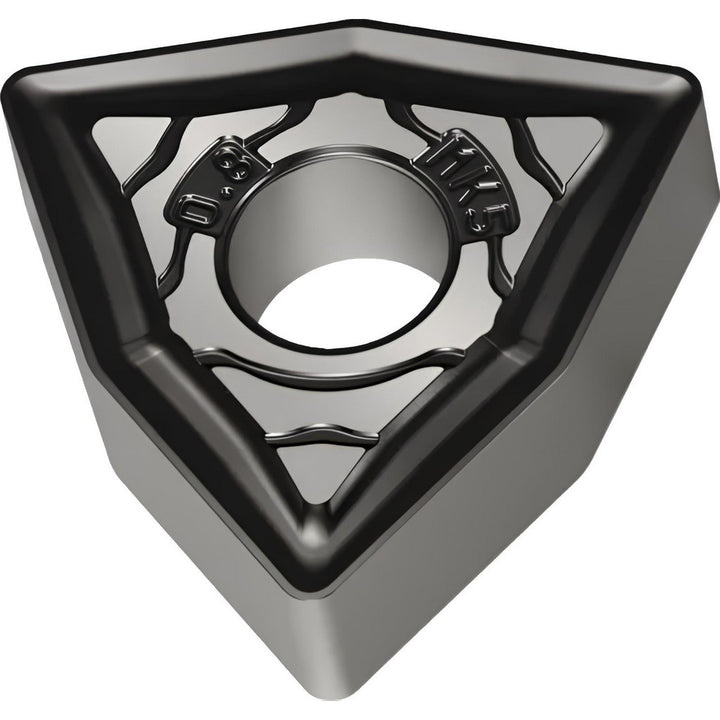

WNMG100612-MK5 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6154418

Walter

WNMG100612-MK5 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6154418

MFR# 6154418ISO/ANSI# WNMG543-MK5 WKK20SSeries WNMG-MK5

$30.58List $38.54 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeTrigon
GradeWKK20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6154418 is a WNMG100612-MK5 WKK20S carbide indexable insert, grade WKK20S, TiCN coated. Suited for cast iron.

Specifications

Chip breakerMK5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberWNMG543-MK5 WKK20S
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8560
Insert materialCarbide
Insert shapeTrigon
Insert size code543
Insert styleWNMG
Insert thickness in1/4
Iso codeWNMG100612-MK5 WKK20S
Lead angle80degree
Length range0.7000 - 10.0000
Manufacturers catalog number6154418
Manufacturer gradeWKK20S
Material gradeK20; P10
Maximum depth of cut0.2756
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle14
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.8560in
Wiper edgeNo
