Walter

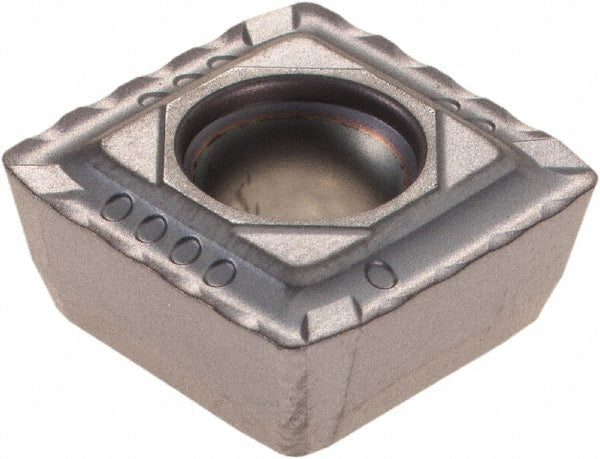

P4840C-7R-E67 WXP40 Solid Carbide Insert, Grade WXP40, Coated - Walter 6154465
MFR# 6154465ISO/ANSI# P4840C-7R-E67 WXP40Series Tiger Tec
$25.35List $32.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWXP40
MaterialSolid Carbide
CoatingCoated
Description
The Walter 6154465 is a P4840C-7R-E67 WXP40 solid carbide indexable insert, grade WXP40, Coated coated. Suited for stainless steel, steel.
Specifications
ChipbreakerE67
Coating finishCoated
Coating processPVD
Corner radius0.0310
Cutting directionRight Hand
Included angle degree90
Inscribed circle0.5780
Insert materialSolid Carbide
Insert size7
Insert size code48
Insert styleP484
Iso codeP4840C-7R-E67 WXP40
Length0.5800
Manufacturer gradeWXP40
Material gradeP40; M30; S30
Number of cutting edges4
Primary workpiece materialStainless Steel; Steel
ShapeSquare
StandardsANSI; ISO
Thickness0.2180
Width0.5800
