Walter

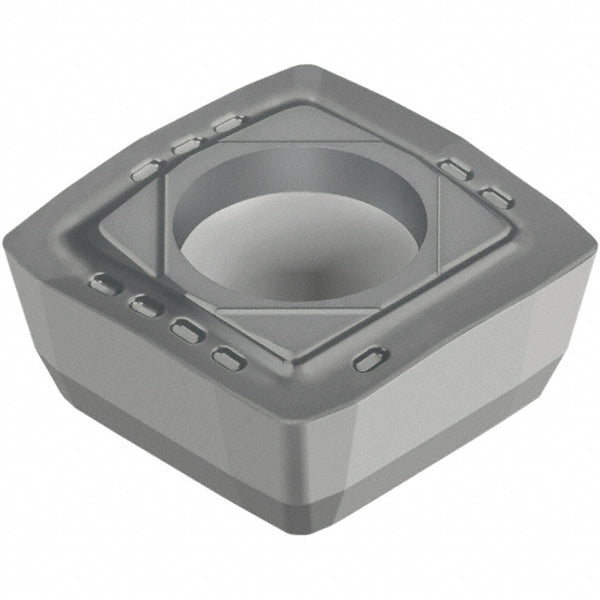

P4841C-5R-A57 WXP40 Solid Carbide Insert, Grade WXP40, Coated - Walter 6154484
MFR# 6154484ISO/ANSI# P4841C-5R-A57 WXP40Series Tiger Tec
$20.81List $26.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWXP40
MaterialSolid Carbide
CoatingCoated
Description
The Walter 6154484 is a P4841C-5R-A57 WXP40 solid carbide indexable insert, grade WXP40, Coated coated. Suited for stainless steel, steel.
Specifications
ChipbreakerA57
Coating finishCoated
Coating processPVD
Corner radius0.0230
Cutting directionRight Hand
Included angle degree90
Inscribed circle0.4050
Insert materialSolid Carbide
Insert size5
Insert size code48
Insert styleP484
Iso codeP4841C-5R-A57 WXP40
Length0.4100
Manufacturer gradeWXP40
Material gradeP40; M30; S30
Number of cutting edges4
Primary workpiece materialStainless Steel; Steel
ShapeSquare
StandardsANSI; ISO
Thickness0.1620
Width0.4100
