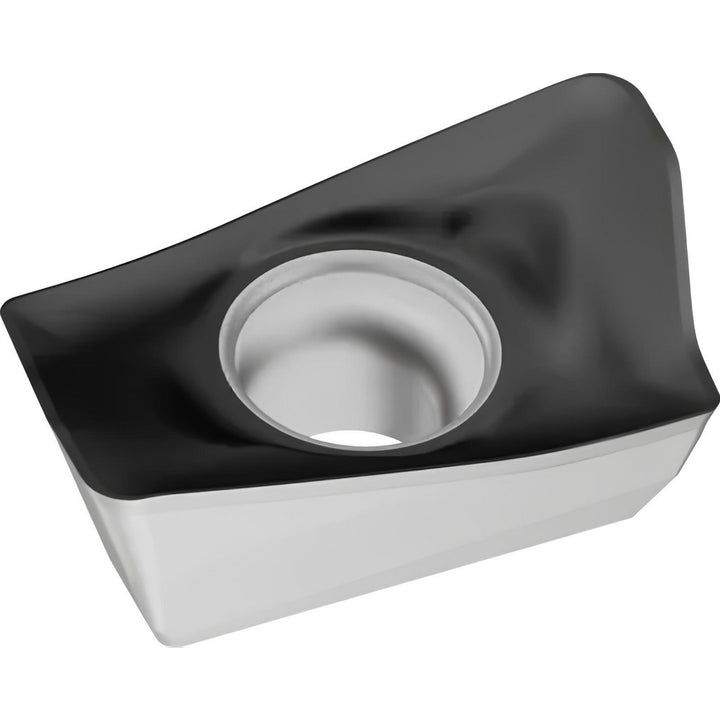

ADMT080308R-F56 WSM35S Solid Carbide Insert, Grade WSM35S, TiAlN - Walter 6158893

Walter

ADMT080308R-F56 WSM35S Solid Carbide Insert, Grade WSM35S, TiAlN - Walter 6158893

MFR# 6158893ISO/ANSI# ADMT080308R-F56 WSM35SCat# ADMT080308R-F56Series ADMT

$24.01List $30.79 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeWSM35S
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 6158893 is a ADMT080308R-F56 WSM35S solid carbide indexable insert, grade WSM35S, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeADMT080308R-F56 WSM35S
Chip breakerF56
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF4038; F4042
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size08
Insert size code080308
Insert styleADMT
Iso codeADMT080308R-F56 WSM35S
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberADMT080308R-F56
Manufacturer gradeWSM35S
Material applicationStainless Steel; Superalloys & Titanium
Material gradeS35; M35
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1320
Thickness range0.1250 to 0.1500
Width in17/64
