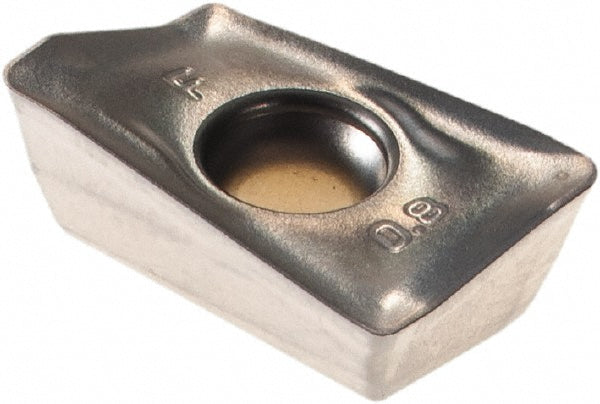

ADMT10T308R-F56 WSM35S Solid Carbide Insert, Grade WSM35S, TiAlN - Walter 6159215

Walter

ADMT10T308R-F56 WSM35S Solid Carbide Insert, Grade WSM35S, TiAlN - Walter 6159215

MFR# 6159215ISO/ANSI# ADMT10T308R-F56 WSM35SCat# ADMT10T308R-F56Series ADMT

$25.27List $32.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWSM35S
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 6159215 is a ADMT10T308R-F56 WSM35S solid carbide indexable insert, grade WSM35S, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeADMT10T308R-F56 WSM35S
Chip breakerF56
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF4042R
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2850
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleADMT
Iso codeADMT10T308R-F56 WSM35S
Length0.4450
Length range0.4000 to 0.4500
Manufacturers catalog numberADMT10T308R-F56
Manufacturer gradeWSM35S
Material applicationStainless Steel; Superalloys & Titanium
Material gradeS35; M35
Maximum depth of cut0.4450
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1500
Thickness range0.1250 to 0.1500
Width0.2850
