Walter

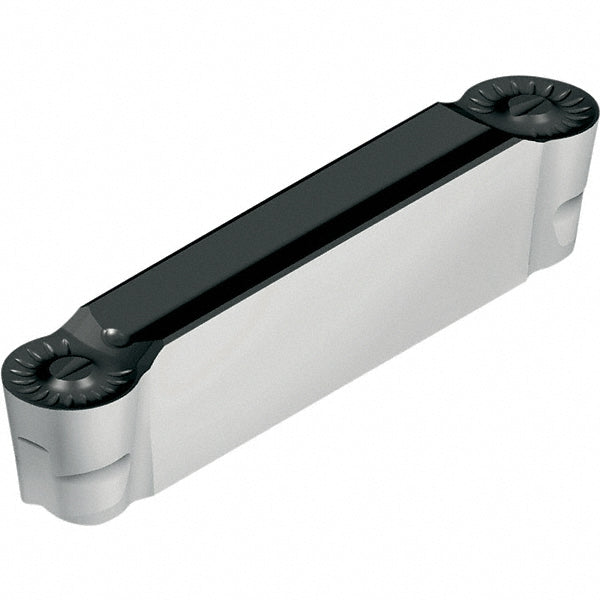

GX24-4E600N300-RF8 Solid Carbide Insert, Grade WSM23S, Al2O3 - Walter 6166566
MFR# 6166566ISO/ANSI# GX24-4E600N300-RF8Cat# GX24-4E600N300-RF8Series Tiger-tec
$55.40List $71.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM23S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6166566 is a GX24-4E600N300-RF8 solid carbide indexable insert, grade WSM23S, Al2O3 coated. Suited for superalloy.
Specifications
Ansi codeGX24-4E600N300-RF8 WSM23S
Chip breakerRF8
Coating finishAl2O3
Coating processPVD
Corner radius0.1181
Cutting width0.2362
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size4E600N300
Insert size code4E600N300
Insert styleGX
Iso codeGX24-4E600N300-RF8
Manufacturers catalog numberGX24-4E600N300-RF8
Manufacturer gradeWSM23S
Material gradeM20; S20; P20
Maximum depth of cut (mm)3.00
Multi use toolYes
Overall length0.9449
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsANSI; ISO
