Walter
P4841P-2R-E57 WKP35S Carbide Insert, Grade WKP35S, TiCN - Walter 6169107
MFR# 6169107ISO/ANSI# P4841P-2R-E57 WKP35SSeries Tiger Tec
$21.50List $27.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWKP35S
MaterialCarbide
CoatingTiCN
Description

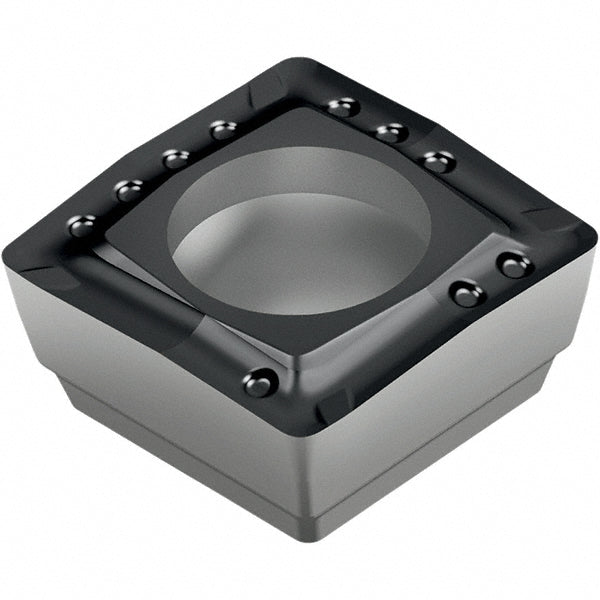

The Walter 6169107 is a P4841P-2R-E57 WKP35S carbide indexable insert, grade WKP35S, TiCN coated. Suited for cast iron, steel.
Specifications
ChipbreakerE57
Coating finishTiCN
Coating processCVD
Corner radius0.0130
Included angle degree90
Inscribed circle0.2170
Insert materialCarbide
Insert size2
Insert size code48
Insert styleP484
Iso codeP4841P-2R-E57 WKP35S
Length0.22
Manufacturer gradeWKP35S
Material gradeP35; K35
Number of cutting edges4
Primary workpiece materialCast Iron; Steel
ShapeSquare
StandardsANSI; ISO
Thickness0.094
Width0.22
