Walter

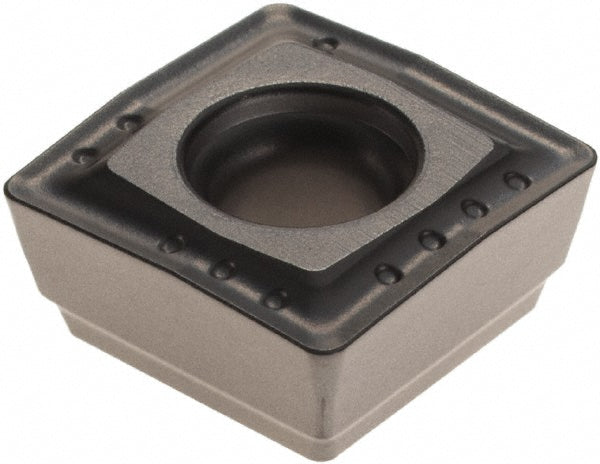

P4841P-6R-E57 WKP35S Solid Carbide Insert, Grade WKP35S, Coated - Walter 6169132
MFR# 6169132ISO/ANSI# P4841P-6R-E57 WKP35SSeries Tiger Tec
$23.16List $29.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWKP35S
MaterialSolid Carbide
CoatingCoated
Description
The Walter 6169132 is a P4841P-6R-E57 WKP35S solid carbide indexable insert, grade WKP35S, Coated coated. Suited for cast iron, steel.
Specifications
ChipbreakerE57
Coating finishCoated
Coating processCVD
Corner radius0.0280
Cutting directionRight Hand
Included angle degree90
Inscribed circle0.4630
Insert materialSolid Carbide
Insert size6
Insert size code48
Insert styleP484
Iso codeP4841P-6R-E57 WKP35S
Length0.4600
Manufacturer gradeWKP35S
Material gradeP35; K35
Number of cutting edges4
Primary workpiece materialCast Iron; Steel
ShapeSquare
StandardsANSI; ISO
Thickness0.1920
Width0.4600
