Walter

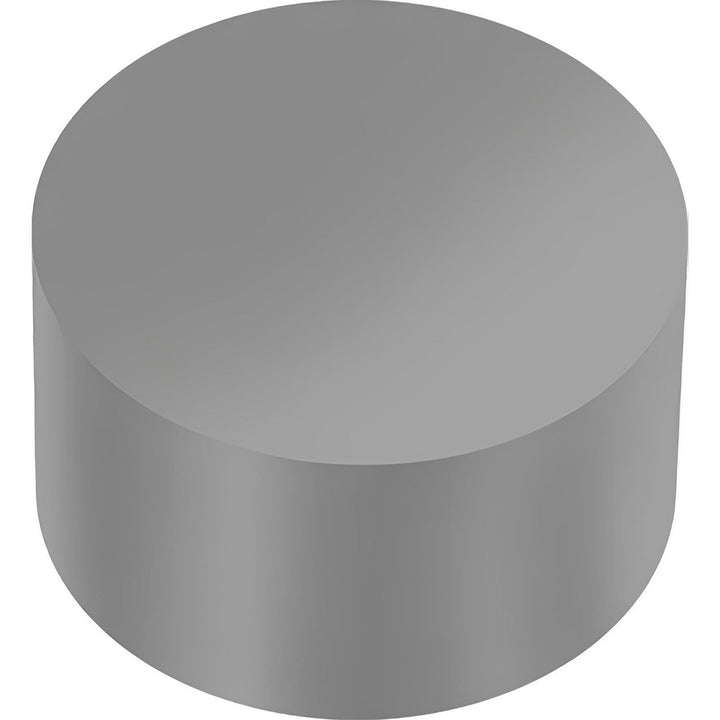

RNGN120700T01020 WIS10 Ceramic Insert, Grade WIS10 - Walter 6188172
MFR# 6188172ISO/ANSI# RNGN45T01020 WIS10Series RNGN
$32.96List $38.22
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
GradeWIS10
MaterialCeramic
Description
The Walter 6188172 is a RNGN120700T01020 WIS10 ceramic indexable insert, grade WIS10. Suited for superalloys & titanium.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/4
Cutting edge styleT-Land
Full radiusYes
Included angle360degree
Industry standard numberRNGN45T01020 WIS10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeRound
Insert size code45
Insert styleRNGN
Insert thickness in5/16
Iso codeRNGN120700T01020 WIS10
Lead angle360degree
Length range0.5000 - 0.6000
Manufacturers catalog number6188172
Manufacturer gradeWIS10
Material gradeS10
Maximum depth of cut0.1417
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle-20
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
