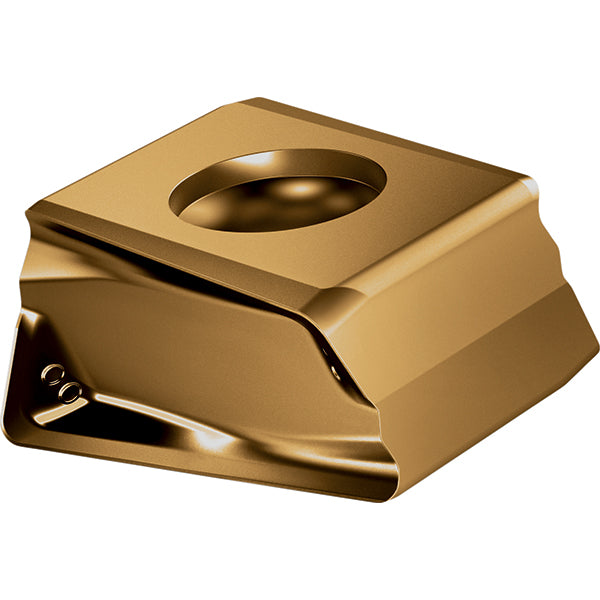

LNHU090404R-L55T WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6192332

Walter

LNHU090404R-L55T WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6192332

MFR# 6192332ISO/ANSI# LNHU090404R-L55T WKP25SCat# LNHU090404R-L55TSeries LNHU

$29.38List $37.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeWKP25S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6192332 is a LNHU090404R-L55T WKP25S solid carbide indexable insert, grade WKP25S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNHU090404R-L55T WKP25S
Chip breakerL55T
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityF2010; F5038; F5041
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.1770
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size09
Insert size code090404
Insert styleLNHU
Iso codeLNHU090404R-L55T WKP25S
Length0.3540
Length range0.3200 to 0.4000
Manufacturers catalog numberLNHU090404R-L55T
Manufacturer gradeWKP25S
Material applicationSteel; Cast Iron
Material gradeP25; K25
Maximum depth of cut0.3540
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle28
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1770
Thickness range0.1750 to 0.1850
Width0.3350
