Walter

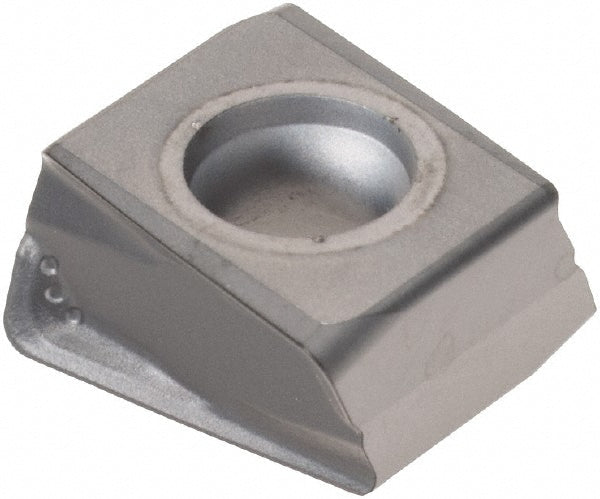

LNHU090408R-L55T WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 6192402
MFR# 6192402ISO/ANSI# LNHU090408R-L55T WKP35SCat# LNHU090408R-L55TSeries LNHU
$32.57List $41.04
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN
Description
The Walter 6192402 is a LNHU090408R-L55T WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi codeLNHU090408R-L55T WKP35S
Chip breakerL55T
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2010; F5038; F5041
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.1770
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size09
Insert size code090408
Insert styleLNHU
Iso codeLNHU090408R-L55T WKP35S
Length0.3540
Length range0.3200 to 0.4000
Manufacturers catalog numberLNHU090408R-L55T
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.3540
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle28
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1770
Thickness range0.1750 to 0.1850
Width0.3350
