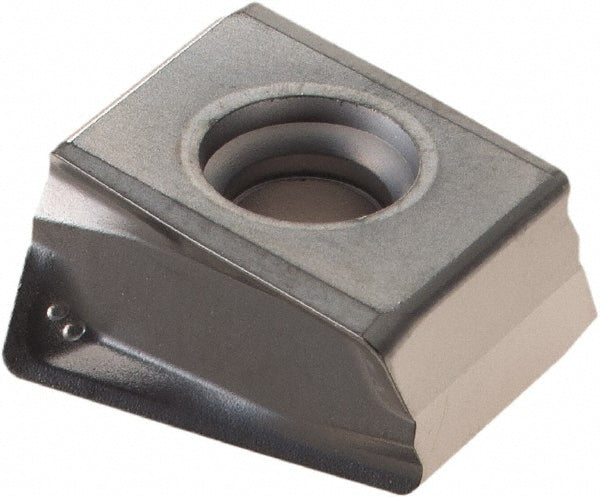

LNHU130608R-L55T WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6192471

Walter

LNHU130608R-L55T WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6192471

MFR# 6192471ISO/ANSI# LNHU130608R-L55T WKP25SCat# LNHU130608R-L55TSeries LNHU

$32.17List $41.26 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeWKP25S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6192471 is a LNHU130608R-L55T WKP25S solid carbide indexable insert, grade WKP25S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNHU130608R-L55T WKP25S
Chip breakerL55T
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2010; F5138; F5141
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.2680
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size13
Insert size code130608
Insert styleLNHU
Iso codeLNHU130608R-L55T WKP25S
Length0.5120
Length range0.5000 to 0.6000
Manufacturers catalog numberLNHU130608R-L55T
Manufacturer gradeWKP25S
Material applicationSteel; Cast Iron
Material gradeP25; K25
Maximum depth of cut0.5120
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle28
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2680
Thickness range0.2500 to 0.3500
Width0.4720
