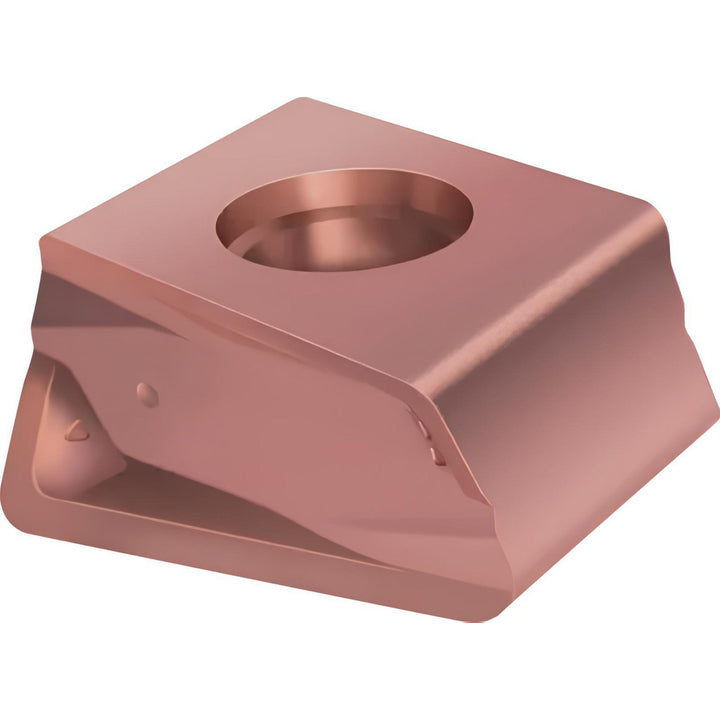

LNHU130608R-L85T WXN15 Solid Carbide Insert, Grade WXN15, TiCN - Walter 6192474

Walter

LNHU130608R-L85T WXN15 Solid Carbide Insert, Grade WXN15, TiCN - Walter 6192474

MFR# 6192474ISO/ANSI# LNHU130608R-L85T WXN15Cat# LNHU130608R-L85TSeries LNHU

$32.17List $41.26 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeWXN15
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6192474 is a LNHU130608R-L85T WXN15 solid carbide indexable insert, grade WXN15, TiCN coated. Suited for non-ferrous metal.

Specifications

Ansi codeLNHU130608R-L85T WXN15
Chip breakerL85T
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF2010; F5138; F5141
Cutting edge styleSharp
Included angle degree90
Inscribed circle0.2680
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size13
Insert size code130608
Insert styleLNHU
Iso codeLNHU130608R-L85T WXN15
Length0.5120
Length range0.5000 to 0.6000
Manufacturers catalog numberLNHU130608R-L85T
Manufacturer gradeWXN15
Material applicationNon-Ferrous Metal
Material gradeN15
Maximum depth of cut0.5120
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle28
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2680
Thickness range0.2500 to 0.3500
Width0.4720
