Walter

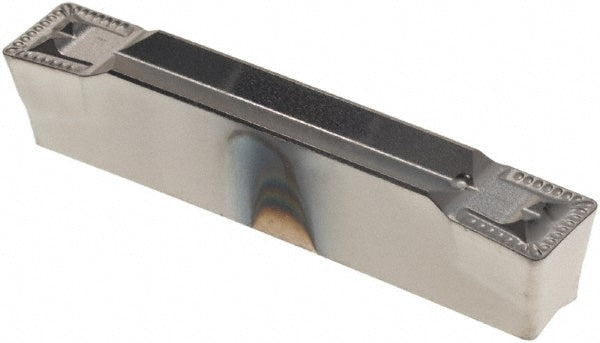

GX24-3E400N04-UD4 Solid Carbide Insert, Grade WSM33S, Al2O3 - Walter 6193843
MFR# 6193843ISO/ANSI# GX24-3E400N04-UD4Cat# GX24-3E400N04-UD4Series Tiger-tec Silver
$36.05List $46.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6193843 is a GX24-3E400N04-UD4 solid carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloy.
Specifications
Ansi codeGX243E400N04UD4 WSM33S
Chip breakerUD4
Coating finishAl2O3
Coating processPVD
Corner radius0.0157
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3E400N04
Insert size code3E400N04
Insert styleGX
Iso codeGX24-3E400N04-UD4
Manufacturers catalog numberGX24-3E400N04-UD4
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Maximum depth of cut0.1102
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.9449
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsANSI; ISO
