Walter

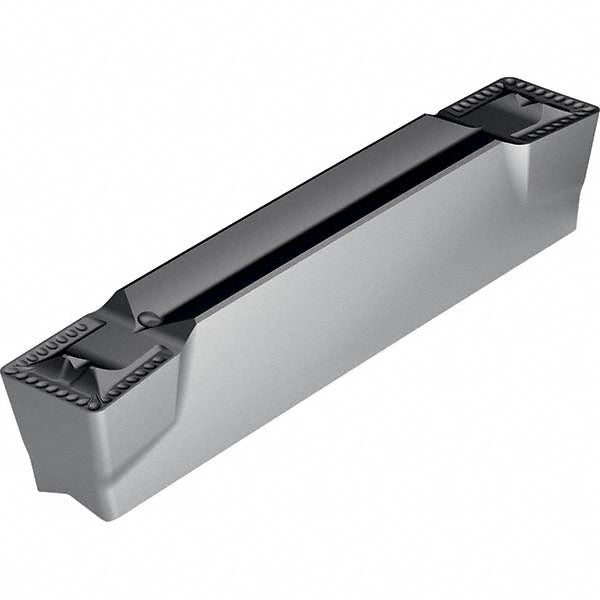

GX24-3E500N08-UD4 Carbide Insert, Grade WSM33S, Al2O3 - Walter 6193846
MFR# 6193846ISO/ANSI# GX24-3E500N08-UD4Cat# GX24-3E500N08-UD4Series Tiger-tec Silver
$36.22List $46.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialCarbide
CoatingAl2O3
Description
The Walter 6193846 is a GX24-3E500N08-UD4 carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloys.
Specifications
Ansi codeGX243E500N08UD4 WSM33S
Chip breakerUD4
Coating finishAl2O3
Coating processPVD
Corner radius0.0315
Cutting width0.1969in
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size3E500N08
Insert size code3E500N08
Insert styleGX
Iso codeGX24-3E500N08-UD4
Manufacturers catalog numberGX24-3E500N08-UD4
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.9449in
Primary workpiece materialSuperalloys
StandardsANSI; ISO
