Walter

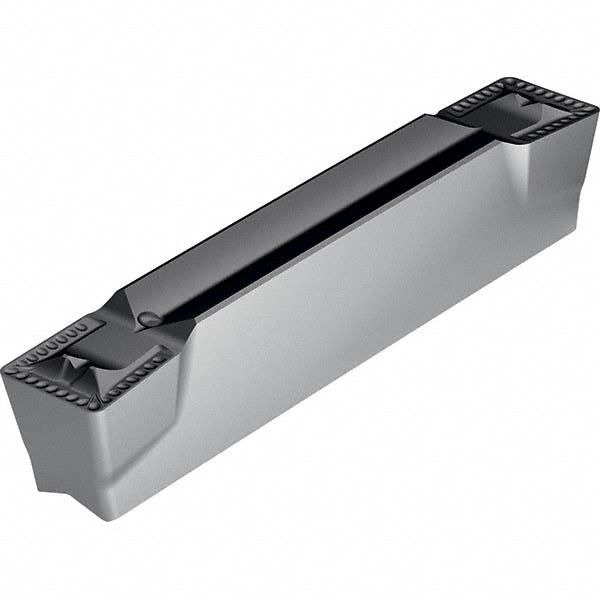

GX30-5E800N08-UD4 Solid Carbide Insert, Grade WSM33S, Al2O3 - Walter 6193847
MFR# 6193847ISO/ANSI# GX30-5E800N08-UD4Cat# GX30-5E800N08-UD4Series Tiger-tec Silver
$51.88List $66.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6193847 is a GX30-5E800N08-UD4 solid carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloy.
Specifications
Ansi codeGX305E800N08UD4 WSM33S
Chip breakerUD4
Coating finishAl2O3
Coating processPVD
Corner radius0.0315
Cutting width0.3150
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size5E800N08
Insert size code5E800N08
Insert styleGX
Iso codeGX30-5E800N08-UD4
Manufacturers catalog numberGX30-5E800N08-UD4
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Maximum depth of cut0.1575
Maximum depth of cut range0.1500 to 0.2000
Multi use toolYes
Overall length1.1811
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsANSI; ISO
