Walter

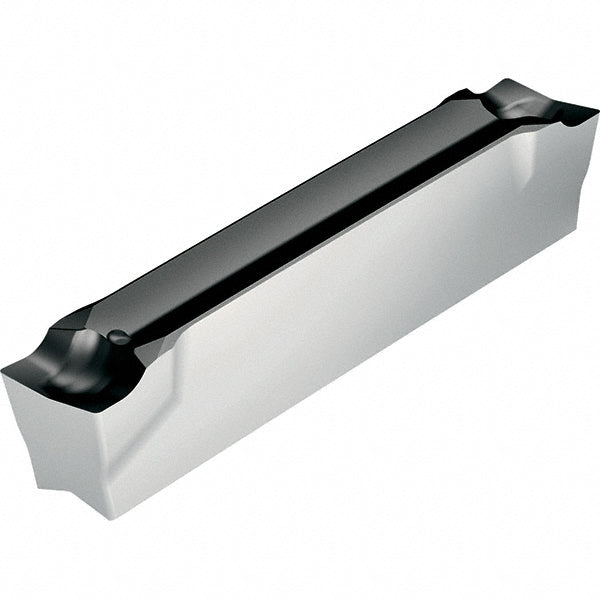

GX16-1E200R15-CF5 Carbide Insert, Grade WSM33S, Al2O3 - Walter 6194899
MFR# 6194899ISO/ANSI# GX16-1E200R15-CF5Cat# GX16-1E200R15-CF5Series Tiger-tec
$33.59List $43.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialCarbide
CoatingAl2O3
Description
The Walter 6194899 is a GX16-1E200R15-CF5 carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloys.
Specifications
Ansi codeGX161E200R15CF5 WSM33S
Chip breakerCF5
Coating finishAl2O3
Coating processPVD
Corner radius0.0591
Cutting width0.0787
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size1E200R15
Insert size code1E200R15
Insert styleGX
Iso codeGX16-1E200R15-CF5
Lead angle15
Manufacturers catalog numberGX16-1E200R15-CF5
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Maximum depth of cut (mm)15.00
Multi use toolYes
Overall length0.6299
Primary workpiece materialSuperalloys
StandardsANSI; ISO
