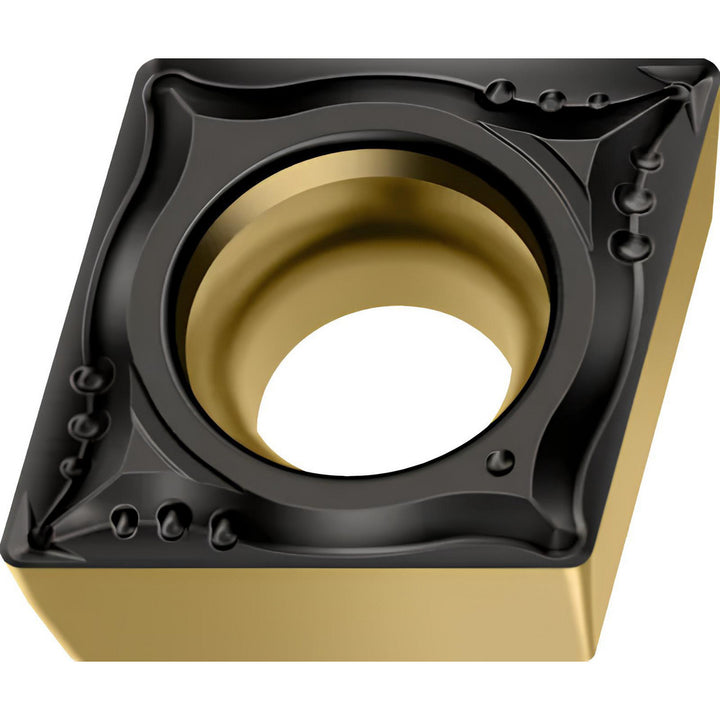

CCMT09T308-MP4 WPP20S Carbide Insert, Grade WPP20S, TiCN - Walter 6296897

Walter

CCMT09T308-MP4 WPP20S Carbide Insert, Grade WPP20S, TiCN - Walter 6296897

MFR# 6296897ISO/ANSI# CCMT09T308Series CCMT-MP4

$14.15List $18.14 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeWPP20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6296897 is a CCMT09T308-MP4 WPP20S carbide indexable insert, grade WPP20S, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCCMT32.52
Ansi size code32.52
Chip breakerMP4
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberCCMT3(2.5)2-MP4 WPP20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3810
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308-MP4 WPP20S
Iso insert codeCCMT09T308
Iso size code09T308
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number6296897
Manufacturer gradeWPP20S
Material gradeP20; K30
Maximum depth of cut0.1000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle7
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.3810
Wiper edgeNo
