Walter

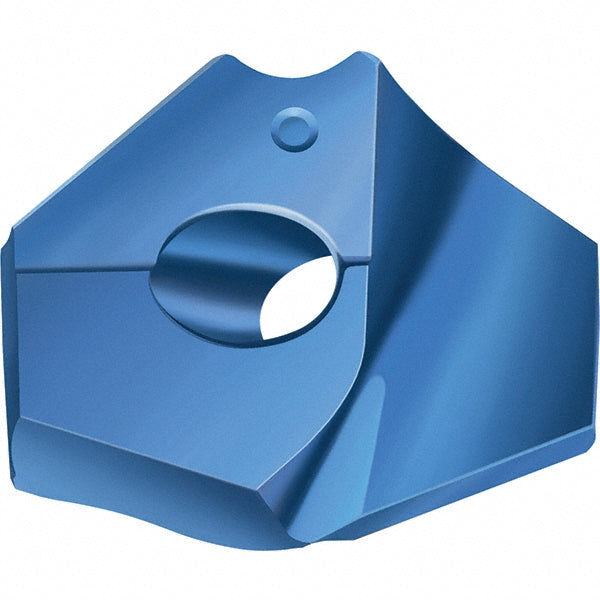

Carbide Insert, Grade WPP45C, TiAlN - Walter 6305318
MFR# 6305318Series P6001
$122.10List $156.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes1
GradeWPP45C
CoatingTiAlN
Description
The Walter 6305318 is a carbide indexable insert, grade WPP45C, TiAlN coated. Suited for steel.
Specifications
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in17/32
Drill point angle140
Flute typeHelical
Included angle degree140
Insert holding methodClamp
Insert seat sizeA
Iso numberP6001-D13,50R WPP45C
Manufacturer gradeWPP45C
Material gradeP45
Number of flutes1
Point typeStandard
Primary workpiece materialSteel
Secondary workpiece materialSteel
Spiral typeRegular Spiral
StandardsANSI; ISO
StyleP6001
Tip materialSolid Carbide
