Walter

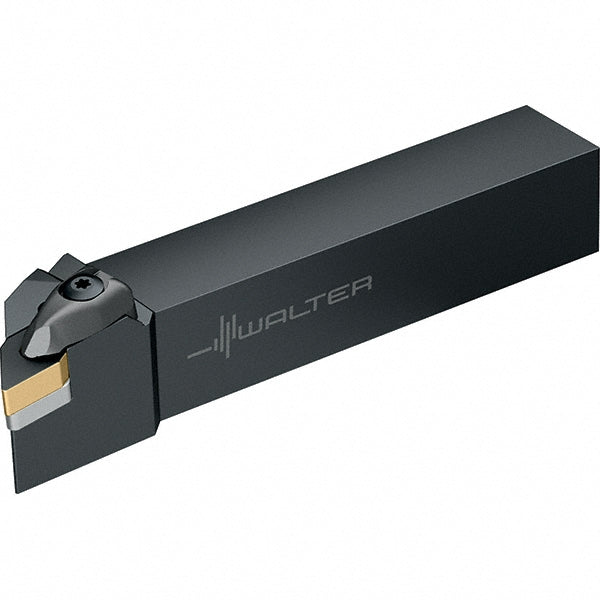

Indexable Turning & Profiling - Walter 6347708
MFR# 6347708Series Walter Turn
$143.92List $168.47
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 6347708 indexable turning & profiling. Series Walter Turn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeDN1504; DN43
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.4200
Insert compatibilityDN..1504..; DN..43..
Insert holding methodClamp
Insert inscribed circle in1/2
Insert width0.6100
Lead angle107.5
Maximum overhang in1.4200
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle0
Shank height1.0000
Shank width1.0000
StandardsANSI; ISO
Toolholder styleDDQN
