Walter

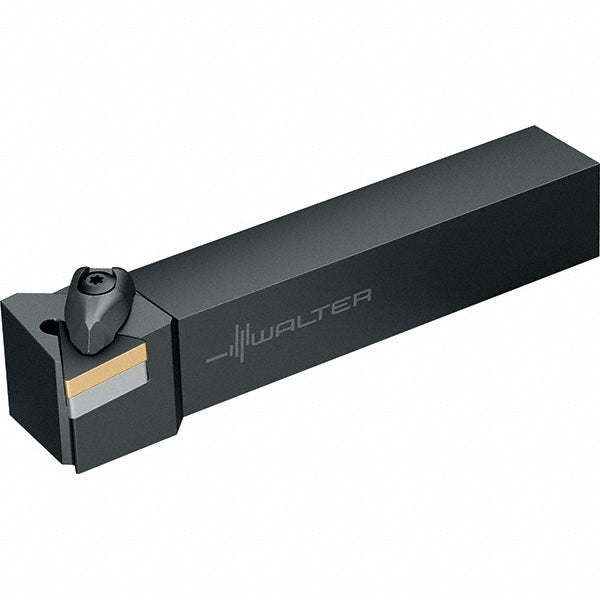

Indexable Turning & Profiling - Walter 6349852
MFR# 6349852Series Walter Turn
$193.75List $226.80
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 6349852 indexable turning & profiling. Series Walter Turn.
Specifications
Back of bar to cutting edge1.5000
Compatible insert size codeTN2706; TN54
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length1.5700
Insert compatibilityTN..2706..; TN..54..
Insert holding methodClamp
Insert inscribed circle in5/8
Insert width1.0630
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6
Shank height1.2500
Shank width in1-1/4
StandardsANSI; ISO
Toolholder styleDTJN
