Walter

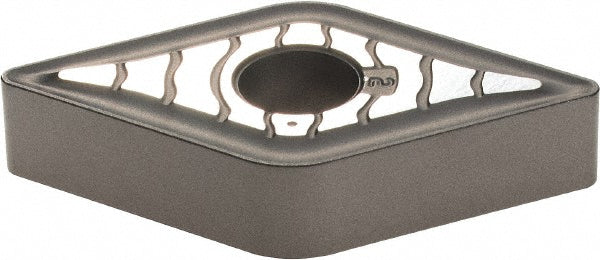

DNMG150408-MK5 WKK10S Carbide Insert, Grade WKK10S, TiCN - Walter 6351915
MFR# 6351915ISO/ANSI# DNMG432-MK5 WKK10SSeries DNMG-MK5
$23.49List $30.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeWKK10S
MaterialCarbide
CoatingTiCN
Description
The Walter 6351915 is a DNMG150408-MK5 WKK10S carbide indexable insert, grade WKK10S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerMK5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG432-MK5 WKK10S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-MK5 WKK10S
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number6351915
Manufacturer gradeWKK10S
Material gradeH30; K10
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle14
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
