Walter

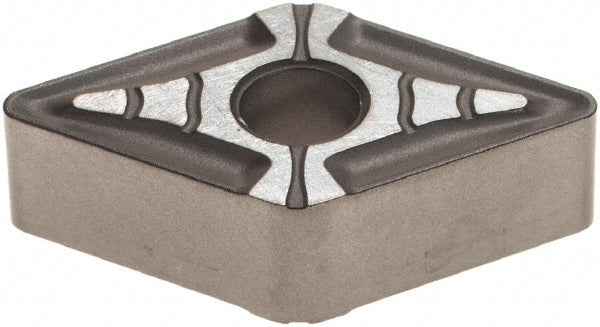

DNMG110408-MK5 WKK10S Carbide Insert, Grade WKK10S, TiCN - Walter 6353406
MFR# 6353406ISO/ANSI# DNMG332-MK5 WKK10SSeries DNMG-MK5
$19.46List $24.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeWKK10S
MaterialCarbide
CoatingTiCN
Description
The Walter 6353406 is a DNMG110408-MK5 WKK10S carbide indexable insert, grade WKK10S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerMK5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle55degree
Industry standard numberDNMG332-MK5 WKK10S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4580
Insert materialCarbide
Insert shapeDiamond 55
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG110408-MK5 WKK10S
Lead angle55degree
Length range0.4000 - 0.5000
Manufacturers catalog number6353406
Manufacturer gradeWKK10S
Material gradeH30; K10
Maximum depth of cut0.1575
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle14
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
